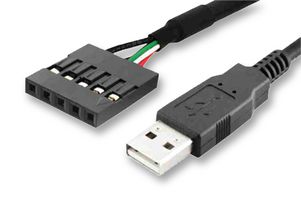

The 4D programming cable is an USB to Serial UART Bridge converter cable used to program Firmware/PmmC's and user application code into the range of 4D Systems modules. It incorporates the Silabs CP2102 USB to Serial UART Bridge IC for USB signalling and protocols. The cable provides a fast and simple way to connect all of the 4D devices that require TTL level serial interface to USB. The Programming Cable is also an essential hardware tool used for programming PmmC files and 4DGL user code downloads into the GOLDELOX and PICASO processors embedded in many 4D modules. The cable features internal electronic circuit board with CP2102 chip and special RESET circuit. The cable is available with a 5 pin female header (0.1"/2.54mm pitch) at TTL levels of 3.3V for RX and TX. The 5pin header is labelled with the appropriate signal names such as 5V, RX, TX, GND and RESET which match the programming headers on the 4D devices. The cable also provides 5V DC supply to power up the target device.
- USB 2.0 compliant full speed 12Mbps maximum speed
- Hardware or Xon/Xoff handshaking supported, 300bps to 1Mbps
- UART supports 5 to 8bit data, 1 to 2 stopbits, odd/even and no parity
- Integrated EEPROM for vendor ID, product ID, serial number, release number
- Virtual COM port drivers allow operation with existing COM port PC applications
- USB powered
- Small size circuitry built inside the USB connector
- 1m in length
