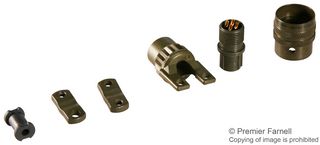

The PT06A8-4S(SR) is a 4-contact Circular Connector with gold-plated contacts, straight plug, 8-4 insert arrangement, socket contact. The standard olive drab, electrically conductive cadmium plate bayonet lock connector with solder contacts. The solder contact miniature cylindrical connector meets the most critical application needs. Design versatility combined with high reliability performance makes these series of miniature cylindrical connector ideal for environmental sealing or pressurized applications. Shell components for these series are aluminum. The dependable 5-key/keyway polarization with bayonet lock coupling assures positive mating with no chance of cross plugging. Spring tension provided by a wave washer in the coupling nut ensures maintenance of interfacial seal between mating halves.
- Designates general duty back shell
- Corrosion-resistant
- Both insert and main joint gasket are molded from resilient neoprene
- Provides excellent moisture sealing at gasket
- Superior electrical insulation of contacts in insert
- Gold plating eliminates contact corrosion and offers an indefinite shelf life
- Designates a strain relief clamp
- -55 to +125°C Operating temperature
