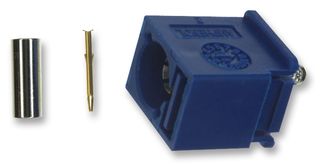

The 2FA1-NCSJ-C01-0 is a straight crimp RF Jack with gold-plated phosphor bronze contacts. This FAKRA series connector is made of zinc die-cast with nickel finish and a PTFE insulator. Utilizing a modified metal SMB coaxial connector, the Amphenol (female) jack features a closed-entry interface with a protected outer contact making the connector more robust than traditional SMB's. Embedded within a plastic housing which features multiple colour codes for easy identification and unique keying to prevent mismating, FAKRA connector is designed to perform up to 6GHz and meet the particular mechanical and environmental requirements of the automotive industry. It is suitable for LMR-100, M17/119-RG174, RG-174, RG-188, RG-188A and RG-316 cable.
Push-on coupling mechanism
Standard polarity
Plastic housing with locking feature and audible clicking noise
Minimum of 100 mating cycles
>1000VRMS Dielectric withstanding voltage (sea level)
