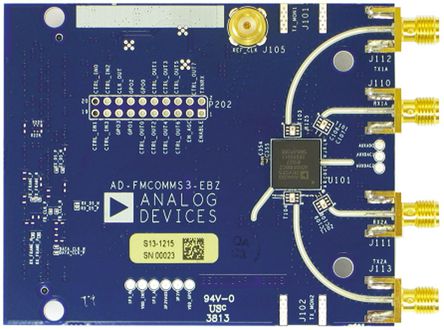

AD-FMCOMMS3-EBZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

AD-FMCOMMS3-EBZ

仓库库存编号：

2426528

技术数据表：



The AD-FMCOMMS3-EBZ is a RF Agile Transceiver with integrated 12-bit DACs and ADCs. The AD9361 is a high performance, highly integrated radio frequency (RF) Agile Transceiver? designed for use in 3G and 4G base station applications. Its programmability and wideband capability make it ideal for a broad range of transceiver applications. The device combines a RF front end with a flexible mixed-signal baseband section and integrated frequency synthesizers, simplifying design-in by providing a configurable digital interface to a processor. The AD9361 operates in the 70 MHz to 6.0 GHz range, covering most licensed and unlicensed bands. Channel bandwidths from less than 200 kHz to 56 MHz are supported. The two independent direct conversion receivers have state-of-the art noise figure and linearity. Each receive (RX) subsystem includes independent automatic gain control (AGC), dc offset correction, quadrature correction and digital filtering.

• 70MHz to 6GHz Bandwidth
• Supports TDD and FDD operation
• Superior receiver sensitivity with a noise figure of 2dB at 800MHz local oscillator (LO)
• RX gain control
• Real-time monitor and control signals for manual gain
• Dual transmitters - 4 differential outputs
