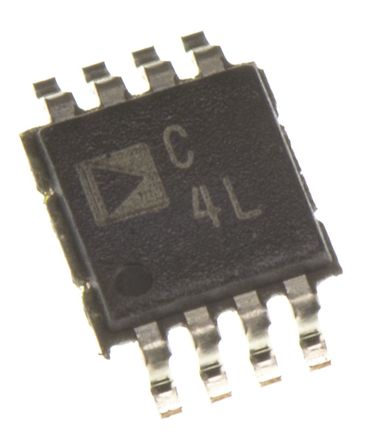

The AD7694BRMZ is a charge redistribution successive approximation PulSAR Analog-to-digital Converter (ADC) that operates from a single power supply VDD, between 2.7 to 5.25V. It contains a low power, high speed, 16-bit sampling ADC with no missing codes (B grade), an internal conversion clock and a serial, SPI-compatible interface port. The part also contains a low noise, wide bandwidth, short aperture delay track-and-hold circuit. On the CNV rising edge, it samples an analog input IN+ between 0V to REF with respect to a ground sense IN-. The reference voltage REF is applied externally and can be set up to the supply voltage.
- No pipeline delay
- Proprietary serial interface - SPI?/QSPI?/MICROWIRE?/DSP compatible
- Improved second source to LTC1864 and LTC1864L
消费电子产品, 自动化与过程控制, 医用, 传感与仪器
