AD9139-EBZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

AD9139-EBZ

仓库库存编号：

2383478

技术数据表：

(EN)

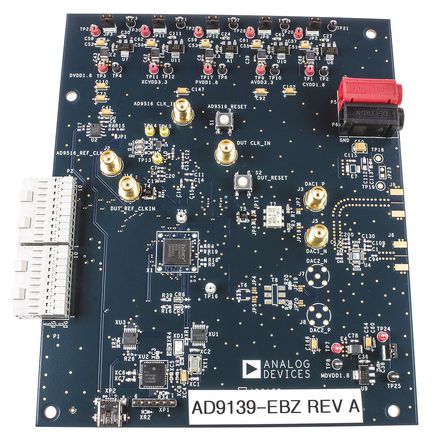

The AD9139-EBZ evaluation board connects to a Data Pattern Generator 2/3 (DPG2/3) for quick evaluation of the AD9139 high speed, signal processing digital to analog converter. The AD9139 is a 16bit, high dynamic range digital to analog converter (DAC) that provides a maximum update rate of 1600MSPS, permitting multicarrier generation up to the nyquist frequency. The DPG2/3 automatically formats the data and sends it to the AD9139-EBZ, simplifying evaluation of the AD9139 device. The evaluation board (EVB) runs from a +5V supply. A clock distribution chip AD9516 is included on this EVB as a clock fan out and frequency divider for the DACCLK, REFCLK and DPG2/3 input clock.

• 575MHz achievable input signal bandwidth
• Advanced low spurious and distortion design techniques
• Very small inherent latency variation simplifies both software and hardware design in the system
• Low power architecture improves power efficiency
• Low power of 700mW at 1230MSPS
• Digital inverse sinc filter
• High performance, low noise PLL clock multiplier
• Multiple chip synchronization
• Flexible 16bit LVDS interface
• Proprietary low spurious and distortion design
