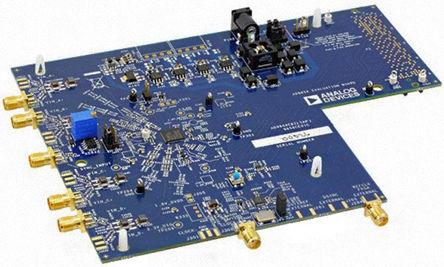

The AD9656EBZ from Analog Devices is an evaluation board for the AD9656, quad 16bit ADC. This reference design provides all of the support circuitry required to operate the devices in their various modes and configurations. It is designed to interface directly with the HSC-ADC-EVALEZ data capture card allowing users to download captured data for analysis. The visual analogue software package which is used to interface with the device's hardware, allows users to download captured data for analysis with a user-friendly graphical interface. The SPI controller software package is also compatible with this hardware and allows the user to access the SPI programmable features of the AD9656.
12V, 3A switching power supply
Analog signal source and anti aliasing filter
Analogue clock source (if not using the on-board crystal)
