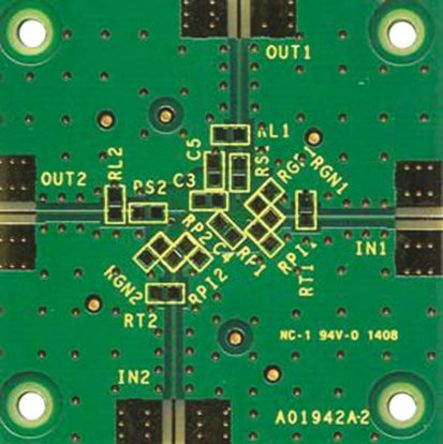

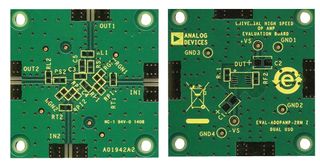

The ADA4896-2ARM-EBZ is an evaluation board for ADA4896-2 dual high speed low noise, low power operational amplifiers with 8-lead MSOP packaged device. The ADA4896-xxx-EBZ is a bare board, that is there are no components soldered to the board. Bare boards enable users to customise the board for a variety of low noise, low power amplifier circuits, which minimizes risk and reduces time to market. The evaluation board can be used with almost any Analog Devices dual op amp in various configurations and applications. The evaluation board is a 2-layer PCB that accepts SMA connectors on the input and output for efficient connection to test equipment. The ground plane, component placement, and supply bypassing are laid out to minimize parasitic inductances and capacitances. The evaluation board components are primarily SMT 0805 case size, with the exception of the electrolytic bypass capacitors.
- Enables quick breadboarding/prototyping
- User defined circuit configuration
- Edge-mounted SMA connector provisions
- Easy connection to test equipment and other circuits
- Low wideband noise
- Low I/f noise of 2.4nV/√Hz @ 10Hz
- Low power of 3mA per amplifier
- Low input offset voltage of 0.5mV maximum
- Rail to rail output
