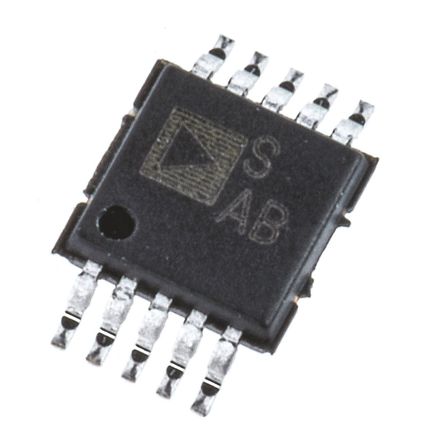

The ADG736BRMZ is a CMOS Low Voltage Dual SPDT Switch designed using a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and wide input signal bandwidth. The on resistance profile is very flat over the full analogue signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching. The ADG736 operates from a single 1.8 to 5.5V supply, making it ideally suited to portable and battery-powered instruments. Each switch conducts equally well in both directions when on and each has an input signal range that extends to the power supplies. The switch exhibits break-before-make switching action.
- 2.5R Typical on-resistance
- Low on resistance flatness
- -3dB Bandwidth (>200MHz)
- Rail-to-rail operation
- Fast switching times
- <0.01μW Typical power consumption
- TTL-/CMOS-compatible
车用, 信号处理, 通信与网络, 电源管理, 音频, 成像, 视频和目视
