ADIS16201/PCBZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

ADIS16201/PCBZ

仓库库存编号：

2377927

技术数据表：

(EN)

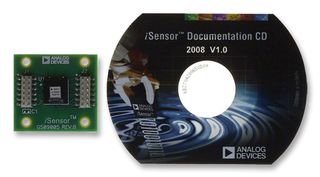

The ADIS16201/PCBZ is a "breakout board" that provides ADIS16201CCCZ and interface PCB to simplify the process of "prototyping" during the early stages of system design and evaluation. The ADIS16201CCCZ is a fully calibrated, digital MEMS inclinometer, which provides a serial peripheral interface (SPI) for all digital communications. ADIS16201/PCB evaluation board provides convenient access to the ADIS16201 IC, using a standard 2mm, 2×6, connector interface. The interface PCB provides access to the ADIS16201CCCZ, using dual row, 12pin connectors, which supports standard ribbon cable systems and hand soldering connection techniques. The ADIS1620x/PCB is designed to be evaluated in an existing digital platform (such as MCU, DSP, FPGA, PLD) or as part of the ADISEVAL system.

• Easy connectivity and do not support stand alone functionality
• Dual axis inclinometer/accelerometer measurements
• 12, 14bit digital inclination/acceleration sensor outputs
• Accelerometer measurement range of +/-1.7g
• Inclinometer measurement range of +/-90 deg, linear output
• 12bit digital temperature sensor output
• Digitally controlled sensitivity and bias calibration
• Digitally controlled sample rate and frequency response
• Digitally activated self test
• Dual alarm settings with rate/threshold limits
