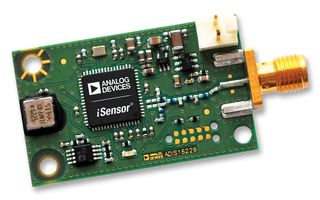

The ADIS16229AMLZ is a Wireless Vibration Sensor Node that combines 2-axis acceleration sensing with advanced time domain and frequency domain signal processing. Time domain signal processing includes a programmable decimation filter and selectable windowing function. Frequency domain processing includes a 512-point, real valued fast Fourier transform (FFT); FFT magnitude averaging; and programmable spectral alarms. The FFT record storage system offers users the ability to track changes over time and capture FFTs with multiple decimation filter settings. The device has dynamic range, bandwidth, sample rate and noise performance.
5.5kHz Sensor resonant frequency
Digital FFT range settings - 1g, 5g, 10g and 20g
Programmable wake-up capture, update cycle times
512-point, Real valued FFT
Rectangular, Hanning and flat top window options
Programmable decimation filter, 11 rate settings
Multi-record capture for selected filter settings
Manual capture mode for time domain data collection
Programmable FFT averaging of up to 255 averages
Record storage - 14 FFT records on two axes (x and y)
