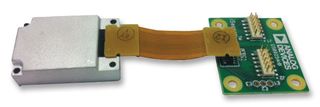

The ADIS16448/PCBZ is a breakout board featuring ADIS16448AMLZ inertial sensor. This breakout board simplify the process of developing a prototype connection with an existing embedded processor system. The ADIS16448AMLZ is a complete inertial system that includes triaxial gyroscope, accelerometer, magnetometer and pressure sensors. Each sensor in the ADIS16448 combines industry leading iMEMS with signal conditioning that optimizes dynamic performance. It provides a dual row, 24 pin connector interface that minimizes board space but does not support standard ribbon cable connections. The flexible cable and interface PCB provides access to the ADIS16448ABMLZ, using dual row, 12 pin connectors, which supports standard ribbon cable systems and hand soldering connection techniques.
- Triaxial digital gyroscope with digital range scaling
- Autonomous operation and data collection
- No external configuration commands required
- Start up time of 205ms
- Factory calibrated sensitivity, bias and axial alignment
- SPI compatible serial interface
- Embedded temperature sensor
- Programmable operation and control
- Single supply operation from 3.15V to 3.45V
- 2000g shock survivability
