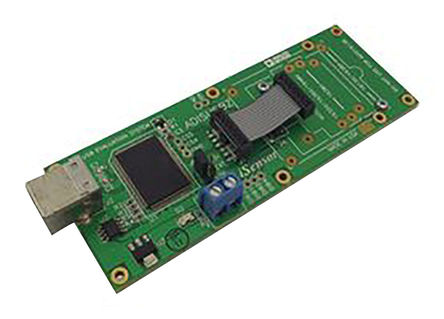

The ADISUSBZ is an iSensor evaluation system. This system provides a simple, PC based tool for evaluating iSensor products. This system supports application software that enable basic demonstration, individual register access and data capture for each supported device. Each application software package comes with an installation wizard, which facilitates simple installation and also includes a simple USB-driver package that is easy to use. All software packages associated with the ADISUSB are compatible with the 32bit versions of Windows XP, Vista and 7. The ADISUSB circuit board is 0.125" thick, which enables pre-drilled, pre-tapped mounting holes for each iSensor device. The integrated power system eliminates the need for external power supplies in most cases, but does provide for an external power supply input, for supply sensitivity testing. The power system uses the USB's +5V and provides a linear regulator option for +3.3V devices.
- PC-USB evaluation system for inertial measurement units PC evaluation software
- It is Windows XP, Vista, 7 compatible (32bit only)
- It has 32bit USB driver support
- It has 2,000 register reads per second (16bit registers)
- It has three different modes like demonstration mode, Register mode, Data-acquisition mode
- No external power supply required for most products
