ADL5902-EVALZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

ADL5902-EVALZ

仓库库存编号：

2072459

技术数据表：

(EN)

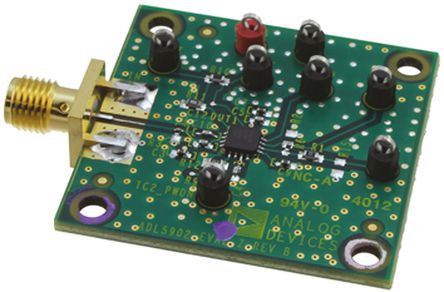

The ADL5902-EVALZ is an evaluation board for the device ADL5902. This is a fully populated, 4-layer, FR4 based evaluation board. For normal operation, it requires a 5V/100mA power supply. The 5V power supply should be connected to the pins labelled VPOS and GND. The RF input signal is applied to the SMA connector labelled IN and the output voltage is available on the SMA connector labelled VOUT. The ADL5902 is a true rms responding power detector that has a 65dB measurement range when driven with a single ended 50R source. This feature makes the ADL5902 frequency versatile by eliminating the need for a balun or any other form of external input tuning for operation up to 9GHz. The ADL5902 provides a solution in a variety of high frequency systems requiring an accurate measurement of signal power. Requiring only a single supply of 5V and a few capacitors, it is easy to use and capable of being driven single ended or with a balun for differential input drive.

• Accurate rms to dc conversion from 50MHz to 9GHz
• Single ended input dynamic range of 65dB
• No balun or external input matching required
• Waveform and modulation independent, such as GSM/CDMA/W-CDMA/TD-SCDMA/WiMAX/LTE
• Linear-in-decibels output, scaled 53mV/dB
• Transfer function ripple of <±0.1dB
• Temperature stability of <±0.3dB
• All functions temperature and supply stable
• power down capability to 1.5mW
