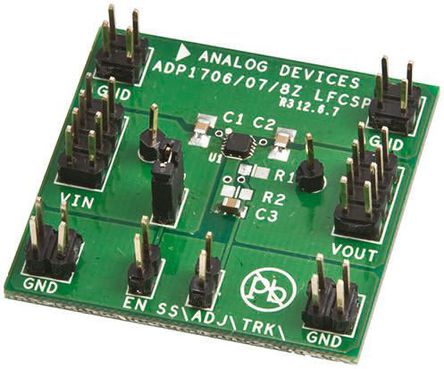

The ADP1706-3.3-EVALZ is an ADP1706 fixed 3.3V output with soft start evaluation board which is used to demonstrate the functionality of the ADP1706 linear regulators. Depending on what component combinations are used, the evaluation board can be used for ADP1706. Simple device measurements such as line and load regulation, dropout, and ground current can be demonstrated with just a single voltage supply, a voltage meter, a current meter, and load resistors. The ADP1706 allows an external soft start capacitor to be connected to program the start up time.
- Input voltage range is 2.5V to 5.5V
- Output current range is from 0mA to 1A
- Output voltage accuracy is ±1%
- External soft start
- Low shutdown current of <1μA
- 16 fixed output voltage options with soft start from 0.75V to 3.3V
- Stable with small 4.7μF ceramic output capacitor
