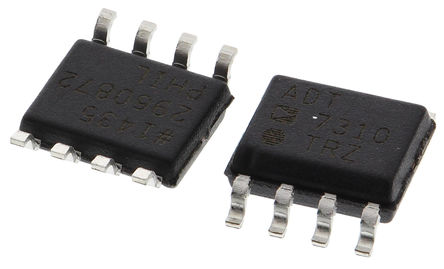

The ADT7310TRZ is a high accuracy 16bit digital SPI temperature sensor in 8 pin NSOIC package. It contains band gap temperature reference and 13bit ADC to monitor and digitize temperature to 0.0625°C resolution. The ADC resolution is set to 13bits (0.0625°C) by default. This can be changed to 16bits (0.0078°C) by setting bit 7 in configuration register. The ADT7310 is guaranteed to operate over supply voltages from 2.7V to 5.5V. The average supply current is typically 210μA at 3.3V. It has shutdown mode that powers down the device and offers shutdown current of typically 2μA.
Temperature accuracy of ±0.5°C
Fast first temperature conversion on power up of 6ms
Low power and easy implementation
No temperature calibration/correction required by user
No linearity correction required
Power saving 1 sample per second (SPS) mode
700μW typical power at 3.3V in normal mode and 7μW in shutdown mode
Programmable interrupts
SPI compatible interface
Wide operating temperature rating from -55°C to 150°C
