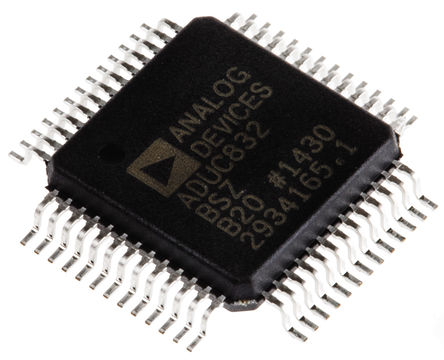

ADUC832BSZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

ADUC832BSZ

仓库库存编号：

1079400

技术数据表：

(EN)

The ADUC832BSZ is a 8-bit Programmable Microcontroller incorporates high-performance self-calibrating multichannel 12-bit ADC and dual 12-bit DACs on a single chip. The device operates from a 32kHz crystal with an on-chip PLL, generating a high frequency clock of 16.78MHz. This clock is, in turn, routed through a programmable clock divider from which the MCU core clock operating frequency is generated. The microcontroller core is an 8052 and is therefore 8051 instruction set compatible with 12 core clock periods per machine cycle. 62kB of nonvolatile Flash/EE program memory are provided on chip. There are also 4kB of nonvolatile flash/EE data memory, 256byte of RAM and 2kB of extended RAM integrated on chip. The ADuC832 also incorporates additional analog functionality with two 12-bit DACs, a power supply monitor and a band gap reference.

• 8-channel, 247kSPS 12-bit ADC
• 1LSB INL DC Performance
• 71dB SNR AC Performance
• DMA Controller for high speed ADC-to-RAM capture
• 2x 12-bit (Monotonic) voltage output DACs
• Dual output PWM/Σ-Δ DACs
• On-chip Temperature sensor function
• On-chip voltage reference
• 8051 Compatible instruction set (16MHz Maximum)
• 12 Interrupt sources, 2 priority levels

• Dual data pointer
• Extended 11-bit Stack pointer
• Time interval counter (TIC)
• Watchdog timer (WDT), power supply monitor (PSM)
• Normal, idle and power-down modes
