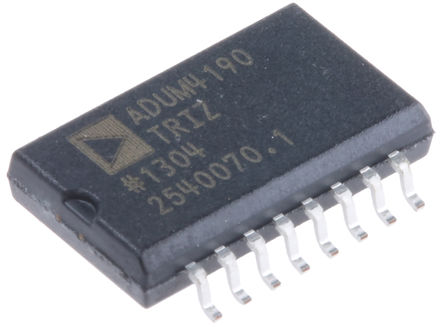

The ADUM4190TRIZ is a High Stability Isolated Error Amplifier based on iCoupler? technology. It is ideal for linear feedback power supplies. The primary side controllers enable improvements in transient response, power density and stability as compared to commonly used optocoupler and shunt regulator solutions. Unlike optocoupler-based solutions, which have an uncertain current transfer ratio over lifetime and at high temperatures, the ADUM4190 transfer function does not change over its lifetime and it is stable over a wide temperature range of -40 to +125°C. Included in the ADUM4190 is a wideband operational amplifier for a variety of commonly used power supply loop compensation techniques. The ADUM190 is fast enough to allow a feedback loop to react to fast transient conditions and over-current conditions. Also included is a high accuracy 1.225V reference to compare with the supply output setpoint.
Stability in isolated feedback applications
0.5% Initial accuracy
1% Accuracy over the full temperature range
Compatible with type II or type III compensation networks
