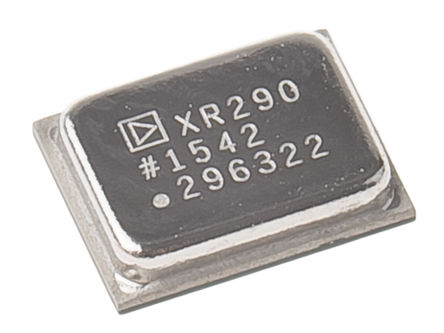

The ADXRS290BCEZ is a 2-axis MEMS Gyroscope designed for use in stabilization applications. This high performance MEMS pitch and roll (dual-axis in-plane) angular rate sensor (gyroscope) provides an output full-scale range of ±100°/s with a sensitivity of 200 LSB/°/s. Its resonating disk sensor structure enables angular rate measurement about the axes normal to the sides of the package around an in-plane axis. Angular rate data is formatted as 16-bit twos complement and is accessible through a SPI digital interface. The ADXRS290 exhibits a low noise floor of 0.004°/s/√Hz and features programmable high-pass and low-pass filters. This gyroscope is ideal to use in optical image stabilization and platform stabilization as well as wearable products.
MEMS pitch and roll rate gyroscope
Ultralow noise (0.004°/s/√Hz)
High vibration rejection over a wide frequency range
Power saving standby mode
Low delay of <0.5ms for a 30Hz input at the widest bandwidth setting
