DEMO-AD5700D2Z -

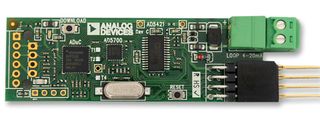

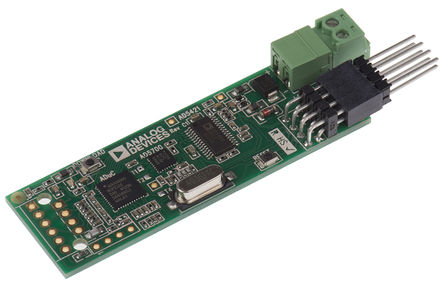

Circuit Evaluation Board for complete 4mA to 20mA Loop Powered Field Instrument with HART Interface

ANALOG DEVICES DEMO-AD5700D2Z
声明:图片仅供参考,请以实物为准!
制造商产品编号:
DEMO-AD5700D2Z
仓库库存编号:
2334291
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

DEMO-AD5700D2Z产品概述

The DEMO-AD5700D2Z is a circuit evaluation board that is a complete smart industrial, loop powered field instrument with 4mA to 20mA analog output and a highway addressable remote transducer (HART) interface. The circuit uses the ADuCM360, an ultralow power, precision analog microcontroller, the AD5421, a 16bit, 4mA to 20mA, loop powered digital to analog converter (DAC) and the AD5700, the industry's lowest power and smallest footprint HART compliant IC modem. HART is a digital 2 way communication in which a 1mA peak to peak frequency shift keyed (FSK) signal is modulated on top of the standard 4mA to 20mA analog current signal. This circuit has been compliance tested, verified and registered by the HART Communication Foundation (HCF). This successful registration provides circuit designers with a high level of confidence using one or all of the components in the circuit.
  • Complete 4mA to 20mA loop powered field instrument
  • HART compliant interface
  • Registered by HART Communication Foundation (HFC)
  • Low power
  • Small footprint
  • Remote calibration
  • Fault interrogation
  • Transmission of process variables

传感与仪器, 通信与网络, 消费电子产品

DEMO-AD5700D2Z产品信息

  硅芯制造商  Analog Devices
  硅芯号  AD5421
  套件应用类型  接口
  应用系统子类型  HART调制调解器
  套件包含  Evaluation Board AD5421, AD5700, ADuCM360
  产品范围  -
关键词
电话:400-900-3095
QQ:800152669

DEMO-AD5700D2Z产地与重量

原产地:
United States

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
84733020
重量(千克):
.112944
