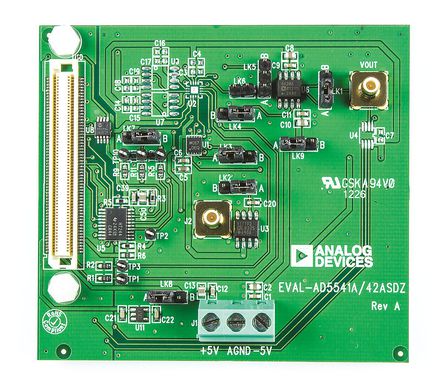

The EVAL-AD5541ASDZ is an evaluation board for unbuffered 16bit DAC AD5541A device. The AD5541A is a single, 16bit, serial input, unbuffered voltage output digital to analog converter. The DAC output range extends from 0V to VREF and is guaranteed monotonic, providing ±1 LSB INL accuracy at 16bits without adjustment over the full specified temperature range of -40°C to +125°C. The AD5541A is available in a 3mm × 3mm, 10 lead LFCSP and 10 lead MSOP. Offering unbuffered outputs, the AD5541A achieves a 1μs settling time with low power consumption and low offset errors. Providing low noise performance of 11.8nV/√Hz and low glitch, the AD5541A is suitable for deployment across multiple end systems. The AD5541A uses a versatile 3 wire interface that is compatible with 50MHz SPI, QSPI, Microwire, and DSP interface standards.
- EVAL-AD5541ASDZ has 16bit resolution
- Supports up to 11.8nV/√Hz noise spectral density
- It has 1μs settling time
- It has 1.1nV-sec glitch energy
- It has 0.05ppm/°C temperature drift
- It provides 5kV HBM ESD classification
- It has 0.375mW power consumption at 3V
- It supports 50MHz SPI/QSPI/MICROWIRE/DSP compatible interface
- Power-on reset clears DAC output to zero scale
