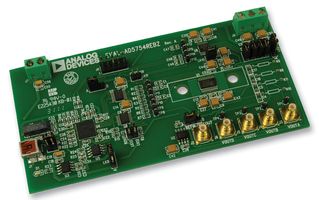

The EVAL-AD5754REBZ is an evaluation board for the AD5754 device which is quad, 16bit, serial input, unipolar/bipolar voltage output DAC. The EVAL-AD5754R is a full featured evaluation board, designed to allow the user to easily evaluate all features of the AD5754R quad channel, 16bit DAC. All of the AD5754R pins are accessible at onboard connectors for external connection. The board can be controlled by two means, via the onboard connector (J8) or via the USB port of a Windows based PC using the AD5754R evaluation software. The default setup is for control via the USB port. Nominal full-scale output range of the device is software selectable from the options of +5V, +10V, +10.8V, ±5V, ±10V, and ±10.8V. Provided on the AD5754R are integrated output amplifiers, reference buffers, and proprietary power up/power down control circuitry.
- Onboard reference
- Various link options
- Direct hook up to USB port of PC
- PC software for control
- Operates from single/dual supplies
- Total unadjusted error (TUE) of 0.1% FSR maximum
- Integrated reference of ±5ppm/°C maximum
- Output control during power up/brownout
- DSP/microcontroller compatible serial interface
- DSP/microcontroller-compatible serial interface
