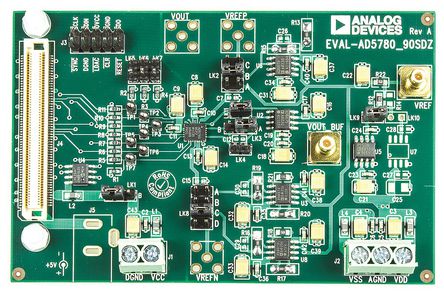

The EVAL-AD5780 is a Full featured evaluation board, designed to allow the user to easily evaluate all features of the AD5780 voltage output, 18bit Digital to analog converter (DAC). The AD5780 pins are accessible at on-board connectors for external connection. The board can be controlled by two means via the on-board connector (J3), or via the system development platform connector (J4). The SDP board allows the evaluation board to be controlled through the USB port of a Windows XP- (SP2 or later) or Vista-based (32bit) PC using the AD5780 evaluation software. The evaluation board for the AD5780 contains a SDP-B connection and software allowing the AD5780 to be controlled from a SDP-B board. The SDP controller board is a separate list item in the ordering guide below (EVAL-SDP-CB1Z).
- Full featured evaluation board for the AD5780
- It has Link options
- PC control in conjunction with analog Devices, system development platform
- PC software for control
- True 18bit accuracy
- Low 8nV/√Hz noise
- Low ±0.018ppm/°C gain error temperature coefficient
- 35MHz Schmitt triggered Digital interface
- Integrated precision reference buffers
