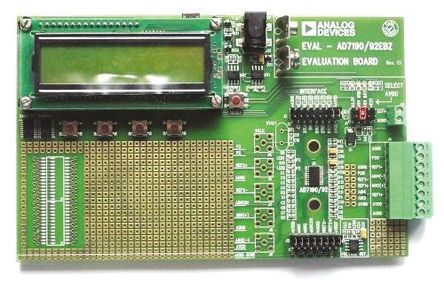

The EVAL-AD7192EBZ is an evaluation kit which is a powerful tool for exploring and evaluating the AD7192 ADC features. The AD7192 is a 4.8KHz ultralow noise 24bit sigma delta ADC. The AD7192 is a complete analog front ends for low frequency measurement applications. This ADC contain two differential inputs/four pseudo differential inputs and includes a low noise instrumentation amplifier, reference detect, and a low side power switch. The evaluation board can be operated in complete standalone, batter -powered mode. The LCD display is used to display the conversion data. When the board is connected to (and possibly powered from) a PC via a standard USB interface, the PC software allows the graphical display of real time data, logs them into a text file, allows to modify the AD7192 internal settings and generally helps in understanding the part features and performance. Finally, the board's flexible interface structure allows it to be connected in a number of useful configurations.
- Powered via the 5V supply from the USB connector
- Standalone interface using microcontroller and LCD display
- PC software for control of AD7192 using USB interface
- Various linking options
