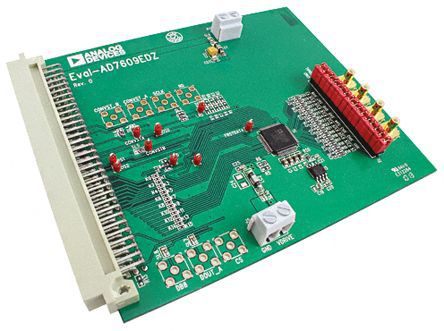

The EVAL-AD7609EDZ is a fully featured evaluation kit for the AD7609. This board operates in standalone mode or in conjunction with the converter evaluation and development board EVAL-CED1Z . When operated with the converter evaluation and development board, software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the converter evaluation and development board. The AD7609 is an 18bit, 8 channel, true differential, simultaneous sampling analog to Digital data acquisition system (DAS). The part contains analog input clamp protection, a second-order antialiasing filter, a track and hold amplifier, an 18bit charge redistribution successive approximation analog to Digital converter (ADC), a flexible Digital filter, a 2.5V reference and reference buffer and high speed serial and parallel interfaces.
- This kit has 8 simultaneously sampled inputs
- It accepts true differential inputs
- It accepts true bipolar analog input ranges of ±10V, ±5V
- Fully integrated data acquisition solution
- analog input clamp protection and input buffer with 1MR analog input impedance
- Second order anti aliasing analog filter
- Flexible parallel/serial interface
