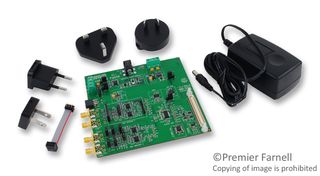

The EVAL-AD7903SDZ is an evaluation kit designed to demonstrate the low power AD7903 performance and to provide an easy to understand interface for a variety of system applications. The AD7903 is a dual 16bit, successive approximation analog to digital converter (ADC). It contains two low power, high speed, 16bit sampling ADCs and a versatile serial interface port. The evaluation board is ideal for use with the EVAL-SDP-CB1Z system demonstration platform (SDP) board and it interfaces to the SDP board via a 120 pin connector. SMA connectors J6, J7, J10 and J15 are provided to connect a low noise analog signal source. The user PC software executable controls the evaluation board over the USB through the EVAL-SDP-CB1Z SDP board.
- 多功能模拟信号调节电路
- 板载参考, 基准缓冲器和ADC驱动器
- PC software for control and data analysis of time and frequency domain
- 低电量消耗
- 无流水线延迟
- 串行端口接口 (SPI)/QSPI/MICROWIRE/DSP兼容
- 单电源2.5V, 与1.8V/2.5V/3V/5V逻辑接口运行
- 信号与93.5分贝噪音与失真比例为1KHz
- -112dB总谐波失真(THD)为1KHz
信号处理, 通信与网络, 测试与测量, 医用, 传感与仪器
