EVAL-AD7961FMCZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-AD7961FMCZ

仓库库存编号：

2361274

技术数据表：

(EN)

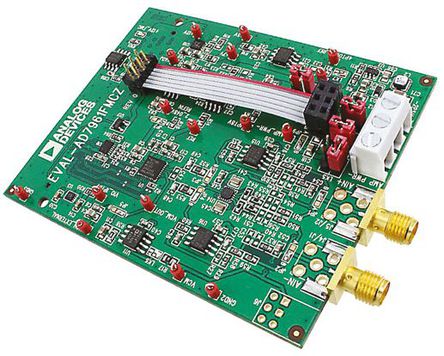

The EVAL-AD7961FMCZ is an evaluation board designed to demonstrate the low power AD7961 performance and to provide an easy to understand interface for a variety of system applications. The AD7961 is a 16bit, 5MSPS charge redistribution successive approximation (SAR), analogue to digital converter (ADC). The SAR architecture allows unmatched performance both in noise and in linearity. The AD7961 contains a low power, high speed, 16bit sampling ADC, an internal conversion clock and an internal reference buffer. This board operates in conjunction with the system demonstration platform (SDP) board, EVAL-SDP-CH1Z. This evaluation board interfaces to the SDP board via a 160 pin FMC connector. SMA connectors, JP1/JP4 and JP2/JP5 are provided for the low noise analogue signal source.

• Versatile analogue signal conditioning circuitry
• Onboard reference, reference buffers and ADC drivers
• System demonstration board compatible (EVAL-SDP-CH1Z)
• PC software for control and data analysis of time and frequency domain
• Throughput of 5MSPS
• 16bit resolution with no missing codes
• Low power dissipation of 39mW
• Internal reference buffer
• External reference options
• Serial LVDS interface
