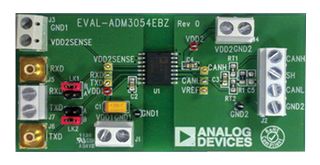

The EVAL-ADM3054EBZ is an evaluation board for the evaluation of ADM3054 isolated CAN transceiver. The ADM3054 is a 5KVrms signal isolated high speed controller area network (CAN) physical layer transceiver with bus protection. This IC creates an isolated interface between the CAN protocol controller and the physical layer bus. It is capable of running at data rates of up to 1Mbps. The ADM3054 has integrated protection on the bus pins, CANH and CANL against shorts to power/ground in 24V systems. The evaluation board allows all of the input and output functions to be exercised without the need for external components. Screw terminal blocks provide convenient connections for logic signals and power. The evaluation board has separate ground and power planes for the logic side and the bus side. This allows evaluation of the isolation capability of the ADM3054.
Isolated ground planes (logic side and bus side)
Convenient connections through screw terminal blocks
3.3V or 5V power on the logic side (VDD1)
5V power on the bus side (VDD2)
CANH and CANL cable shield and bus signals
Termination resistors (2 × 30ohm) with common mode filter
