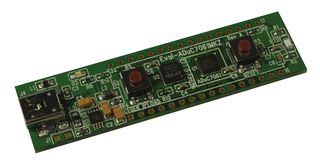

The EVAL-ADUC7061MKZ是一个评估电路板 用于low power, Precision 模拟微控制器设备ADuC7061 开发 系统. The ADuC7061 are fully集成, 8kSPS, 24bit data acquisition 系统s incorporating 高性能multichannel sigma delta (Σ-Δ) 模拟to 数字converters (ADCs), 16位/ 32位ARM7TDMI mcu,和闪存/EE存储器 on a single 芯片. The ADCs consist of a primary ADC with two differential pairs or four single ended channels和an auxiliary ADC with up to seven channels. The ADCs operate in single ended or differential input mode. A single-channel buffered voltage output DAC is available on 芯片. The DAC output range is 可编程 to one of four voltage ranges.
- 模拟输入/输出, 双路(24位)模数转换器 带单端和差分输入
- 可编程模数转换器输出 速率4Hz至8kHz
- 可编程数字滤波器
- 可编程传感器激励电流源 范围为200μA至2mA
- 支持单路14位电压输出数模转换器
- ARM7TDMI内核, 16/32位RISC架构
- JTAG端口支持编码下载和调试
- 32kB闪存/EE内存, 含2kB kernel 4kB SRAM
- 支持SPI接口(5Mbps), UART串行输入/输出和I2C (主/从)
工业, 传感与仪器, 自动化与过程控制
