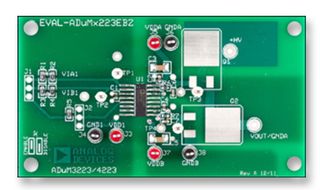

The EVAL-ADUM3223AEBZ is an evaluation board for the ADuM3223 iCoupler device. The EVAL-ADuM3223AEBZ support the ADuM3223 isolated precision half-bridge drivers respectively, Because the evaluation boards have footprints for IGBTs and Mosfet's in TO-263 or TO-252 packages, the ADuM3223 can be evaluated with many different power devices. The evaluation board also allow the high side supply to be boot-strapped to the low side supply. The ADuM3223A model represents a superset of the ADuM3223 models because it has the lowest minimum output voltage (4.5 V). The ADuM3223 isolators provide two independent isolated channels. They operate with an input supply ranging from 3V to 5.5V, providing compatibility with lower voltage systems. The ADuM3223 provide reliable control over the switching characteristics of IGBT/Mosfet configurations over a wide range of positive or negative switching voltages.
Peak output current of 4A
High frequency operation of 1MHz maximum
Supports CMOS input logic levels
EVAL-ADUM3223AEBZ delivers 4.5V to 18V output drive
(EN)
