EVAL-ADUSB2EBZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-ADUSB2EBZ

仓库库存编号：

2378637

技术数据表：

(EN)

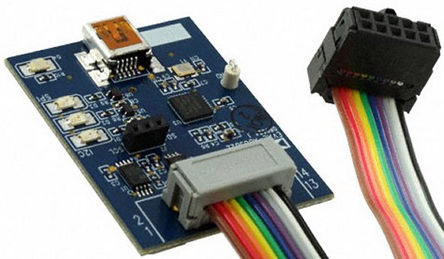

The EVAL-ADUSB2EBZ is an Evaluation Board for the ADUSB2EBZ USB-to-I2C and SPI conversion. It is compatible with 1.8 and 3.3V target devices and allows for SigmaStudio? integration for most SigmaDSP? processors. The EVAL-ADUSB2EBZ is ideal for downloading code and register settings to SigmaDSP processors and codecs with SigmaStudio. The EVAL-ADUSB2EBZ, also known as the USBi, is a standalone communications interface and programmer for SigmaDSP systems. It translates USB control commands from SigmaStudio to the I2C and SPI communications protocols. The USBi is powered over the USB cable and therefore, no external power supply is required. The ribbon cable and 10-pin header form a bridge to the target board to connect the communications signals to the target IC. The ribbon cable also carries 5V power from the USB hub, which can be used to power the target board if desired.

• SPI control of up to 5 slave devices with a low profile surface mount USB mini type B connector
• Allows for plug-and-play operation
• On-board power regulators are capable of supplying the target board
• A standard Aardvark-compatible programming header
• Used for real-time tuning of SigmaDSP production units with SigmaStudio
