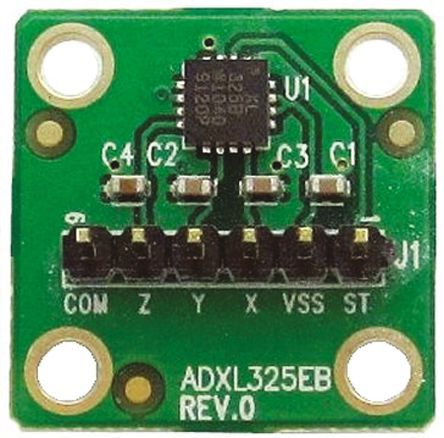

The EVAL-ADXL325Z is a simple Evaluation Board that allows quick evaluation of the performance of the ADXL325 three-axis accelerometer. The EVAL-ADXL325Z has a 6-pin 0.1-inch spaced header for access to all power and signal lines that the user can attach to a prototyping board (breadboard) or wire using a standard plug. Four holes are provided for mechanical attachment of the EVAL-ADXL325Z to the ADXL325. It is not reverse polarity protected. Reversing the +V supply and ground pins can cause damage to the ADXL325.
- Excellent temperature stability
- Bandwidth adjustment with a single capacitor per axis
