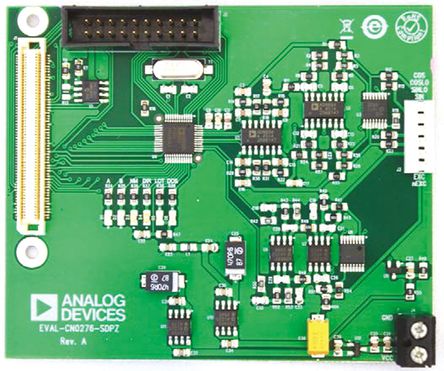

The EVAL-CN0276-SDPZ is a complete high performance resolver to digital (RDC) circuit that accurately measures angular position and velocity. This circuit uses AD2S1210 variable resolution 10bit to 16bit R/D converter with reference oscillator, AD8397 rail to rail high output current amplifier, ADG1611/ADG1612 quad SPST switches, ADM6328 ultralow power microprocessor reset circuit, ADP7104 low noise CMOS LDO and AD8692/AD8694 opamps. The circuit has an innovative resolver rotor driver circuit that has two modes of operation which are high performance mode and low power mode. This circuit can used for various types of resolver. For the best performance, the designer should adjust the passive components appropriately.
- High and low voltage drive options
- Maximum tracking rate of 3125rps
