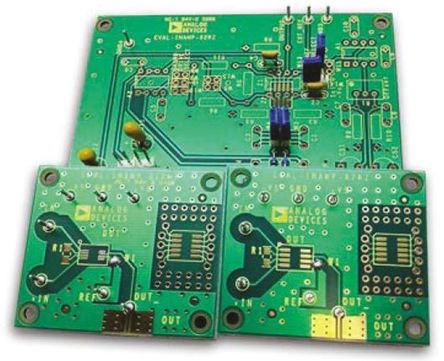

The EVAL-INAMP-62RZ is designed for evaluation of instrumentation amplifiers in the legacy pinout. This board can be used to evaluate the AD620, AD621, AD622, AD623, AD627, AD8223 and AD8225 instrumentation amplifiers. In addition to the basic inAmp connection, circuit options enable the user to adjust the offset voltage, apply an output reference or provide shield drivers with user supplied components. The board is shipped with an assortment of instrumentation amplifier ICs in the legacy SOIC pinout typically AD620, AD621, AD622, AD623, AD8223 and AD8225. The board also has an alternative footprint for a through hole, 8 lead PDIP.
- Generic and easy to use evaluation board
- Shipped with an assortment of Analog Devices instrumentation amplifiers
- Onboard decoupling capacitors and test pins
