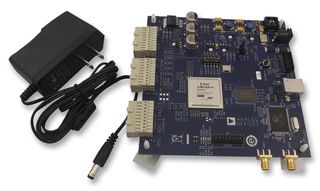

The HSC-ADC-EVALCZ is an high speed analog to digital converter FIFO(A) evaluation kit. This FIFO board can be connected to a PC through a USB port and used with ADC analyzer to evaluate the performance of high speed ADCs quickly. Users can view an FFT for a specific analog input and encode rate and analyze SNR, SINAD, SFDR, and harmonic information. The evaluation kit is easy to set up. Additional equipment needed includes an Analog Devices high speed ADC evaluation board, a power supply, a signal source, and a clock source. Once the kit is connected and powered, the evaluation is enabled instantly on the PC. The HSC-ADC-EVALA-DC is used with dual ADCs and converters with demultiplexed digital outputs.
- Buffer memory board for capturing digital data
- Used with high speed ADC evaluation boards
- 32kB FIFO depth at 133MSPS (upgradeable to 256kB)
- Simplifies evaluation of high speed ADCs
- Measures performance with ADC analyzer
- Simple USB port interface
- Import raw text data for analysis
- Real time FFT and time domain analysis
- Analyze SNR, SINAD, SFDR, and harmonics
- Compatible with Windows 98 (2nd Ed), Windows 2000, Windows Me, or Windows XP
