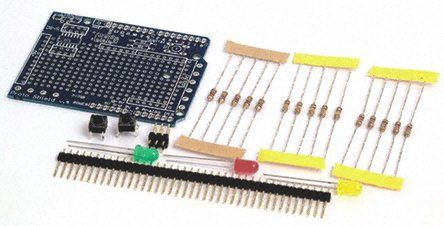

The A000083 is a Proto shield Kit Rev3 for Arduino. The prototyping shield Kit makes it easy for you to design custom circuits for your next Arduino project. You can solder parts to the prototyping area to create your project, or use it with a small solder less breadboard (not included) to quickly test circuit ideas without having to solder. It's got extra connections for all of the Arduino I/O pins, and it's got space to mount through hole and surface mount integrated circuits if you need to as well. It's a convenient way to make your custom circuit and Arduino into a single module. The Proto Shield Kit allows you to move your projects from a breadboard to an Arduino compatible PCB. Included are a number of common components. The 1.0 standard pin out consist in four additional pins two of them placed near the AREF pin, that are used for TWI communication, and the other 2 are placed near the RESET pin.
- ICSP header
- LED one and LED two headers (with resistor headers)
- S1 button header
- SOIC prototyping area up to 14pin SOIC chip, narrow medium or wide package
- Ten bigger holes for special needs
- Long and easy to solder ground/5V rails
