K000002 -

制造商：

ARDUINO ARDUINO

制造商产品编号：

K000002

仓库库存编号：

2075351

技术数据表：

(EN)

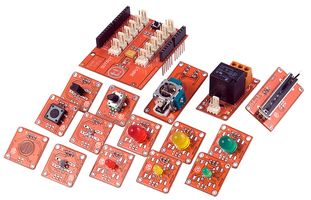

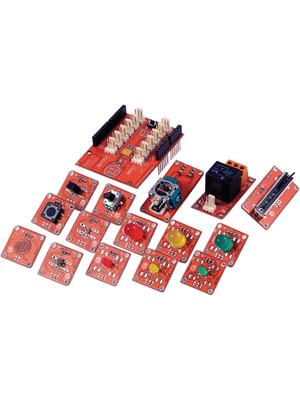

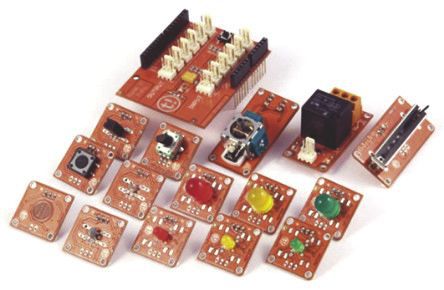

The K000002 starter kit is a pack of different TinkerKit modules, aimed to start designing interactive environments/prototype interfaces without using the breadboard or the soldering iron. The kit contains sensor shield v.2 allows you to hook up the TinkerKit sensors and actuators directly to the Arduino, without the use of the breadboard. The kit contains the LDR module a variable resistor (Light falling on the sensor decreases its resistance). The tilt sensor module which can detect when it is at an angle. The thermistor module whose resistance varies significantly with temperature. A potentiometer is a commonly used variable resistor. Turning the knob, you vary the output voltage between 0 and 5V. This value is sent through the middle pin of the pot. The Joystick module is similar to analog joysticks found in gamepads. The Touch sensor that is sensitive to skin contact. The kit also contains button module, linear potentiometer module relay module and LEDs.
