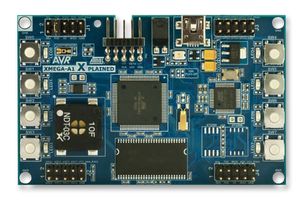

The ATAVRXPLAIN是一个Atmel XMEGA-A1 Explained评估套件和硬件平台to evaluate the Atmel ATxmega128A1微控制器. The套件offers a larger range of features that enables the Atmel AVR XMEGA user to get started using XMEGA 外部设备 right away和underst和how to 集成 the XMEGA设备in their own设计. The套件offers a range of features that enable the Atmel AVR XMEGA user to get started using AVR XMEGA 外部设备 right away和underst和how to 集成 the AVR XMEGA设备in their own设计. The pre-programmed boot loader on the Atmel ATxmega128A1 offers the possibility to program此设备 via the UART 接口. The boot loader on the ATxmega128A1 is evoked by pushing the mechanical switch (SW0) during reset.编程can be performed by using the BatchISP comm和line工具from the FLIP installation.
- Atmel ATxmega128A1微控制器
- 使用模数转换器读取温度传感器
- 使用模数转换器读取光传感器
- 通过数模转换器, 放大器和扬声器生成声音
- 读写数据至8MB SDRAM
- 八个按钮连接至微控制器
- 八个LED用于显示状态信息
- 电路板控制器 通过USB由 ATmega128A1 UART发送数据至电脑
- 通过启动加载程序或Atmel编程器编程
- 用Explained顶部模块扩展电路板
建筑自动化, 安全, 消费电子产品, 音频, 成像, 视频和目视, 工业, 照明, 计量, 便携式器材
