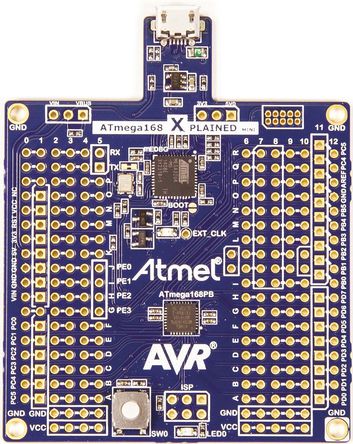

The ATMEGA168PB-XMINI is a Xplained Mini Evaluation Kit that is a hardware platform for evaluating the Atmel ATmega168PB microcontroller. The evaluation kit comes with a fully-integrated debugger that provides seamless integration with Atmel Studio 6.2 or later. The kit provides access to the features of the ATmega168PB enabling easy integration of the device in a custom design.
On-board debugger with full source-level debugging support in Atmel Studio
Auto-ID for board identification in Atmel studio 6.2
Access to all signals on target MCU
One green status LED
One mechanical user pushbutton
Virtual COM port (CDC)
16MHz target CLK
USB-powered
Arduino shield-compatible foot prints
Target SPI bus header foot print
Xplained Pro extension headers can easily be strapped in
Supported with application examples published on Atmel Spaces
