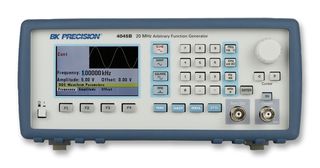

Model 4045B is a 20 MHz DDS (direct digital synthesis) function generator that generates stable and precise sine, square, and triangle waveforms. It provides variable output voltages from 0 to 10 Vpp into 50R (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation, built-in counter, and a continuously variable DC offset that allows the output to be injected directly into circuits at the correct bias level. Separate output amplitude and DC offset amplifiers let you set a large DC offset (e.g. ± 4.99 V ) with a small amplitude output signal (e.g. 10 mV), a feature typically found in more expensive generators.
- Triangle/ramp waveforms up to 2 MHz
- Sine and square waveforms up to 20 MHz
- 12-bit, 50 MSa/s, 1k point arbitrary waveform generator
- Bright colour display with waveform preview
- Linear and logarithmic sweep
- AM/FM modulation
- Independent output and DC offset amplifiers allow for small amplitude output signals
- Low-jitter square wave generation
- Adjustable duty cycle
- Output ON/OFF button
- Internal/external triggering
- Built-in counter
- USB interface
- SCPI-compliant command set
- Gate and burst mode
- Short circuit and overvoltage protection on all inputs and outputs
- 3 Year manufacturer warranty
