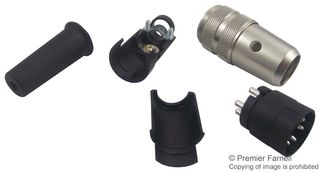

The 09 0313 00 05 from Binder is a miniature circular cable plug connector with 5 pin contacts. This connector has compact design and easy to assemble. The contact terminals ensure a secure connection even in the case of high vibration and impact loads. It has M16 screw locking facility according to DIN EN 61076-2-106 standard and provides good EMI characteristics.
Cable outlet diameter of 3mm to 6mm
Solder termination
Wire gauge size is 0.75mm2 (20AWG)
IP40 degree of protection
Temperature range from -40°C to 85°C
Rated voltage of 250V
Rated current of 6A at 40°C
Brass (CuZn) contacts with silver (Ag) plating
UL94 V-0 rated polybutylene terephthalate (PBT) contact body
