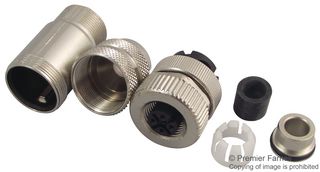

The 99-1430-814-04 is a 4-contact 250V/4A female Circular Connector with gold-plated brass contacts, PA contact body and nickel-plated zinc die-casting housing. The 713 series socket with EMI shielded, metal coupling nut, M12 screw locking system, screwing termination, cable mounting style. It accepts 18AWG (0.75mm2) wire, 4 to 6mm cable outlet.
- 2500V Rated impulse voltage
- <=3mR Volume resistivity
- >100 mating cycles Mechanical operation
- IP67 Protection rating
