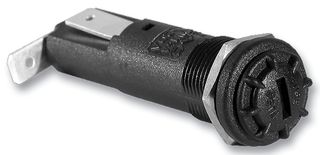

The FX0419 is a 16A 250VAC/DC cartridge panel-mount Fuse Holder with polyester body, nylon cap, glass filled nylon nut, brass and silver plated contacts, screw cap/screwdriver/hand release fuse carrier and quick connect holder terminals. This fuse features panel sealed to IP68, touch-proof category PC2.
- 2.5W Maximum power dissipation
- >10?MR at 500VDC Insulation resistance
- >2kVAC Breakdown
- <10mR Contact resistance
- -20 to 85°C Operating temperature range
