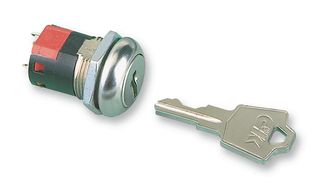

The Y201132C203NQ is a double-pole double-throw (DPDT) 90° key pull Tumbler Switchlock with solder lug (with hole) termination, two nickel plated brass keys, 4 tumbler lock with detent and stainless steel facing lock finish. The Y series switch has silver plated copper contact, zinc alloy mounting nut and glass filled polyester housing.
Below 10mR typical initial at 2 to 4VDC 100mA Contact resistance
