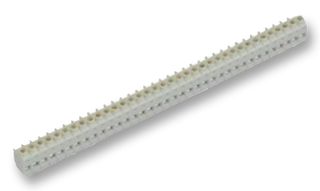

The CTB7300/36F is a 36-pole 250V/16A female header pluggable Terminal Block with UL94-V0 flame retardant PC grey moulding, tinned nickel plated brass pin/terminal, zinc plated steel rising clamp, M2.5 steel zinc plated captive screw, 5mm pitch, professional rising clamp terminal. It features anti solder wicking and guided pin alignment. It accepts 0.2 to 2.5mm2 (24 to 12AWG) solid and stranded cable.
- For vertical or 90° mounting
- >=2.5kV Dielectric strength
- 4kV Impulse withstand voltage
- 0.4Nm Torque
