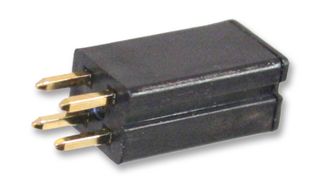

The RBS040100 from Comus is a tilt switch with mercury free contacts. These operate when tilted from the horizontal position. The switch movement required to cause contact change is called the differential angle. It is very important when designing a tilt switch to allow for the differential angle and understand that when in the horizontal position the switch contact may be open or closed.
Maximum switching voltage is 24V
Maximum switching current is 25mA
14.5mm length
5mm diameter
Maximum contact resistance is 5ohm initially
Operating temperature range from -25° to 70°C
Glass fibre polyamide, UL94V-0 case material
Pin termination
Make angle is 10° below horizontal, break angle is 10° above horizontal and 15°differential angle
