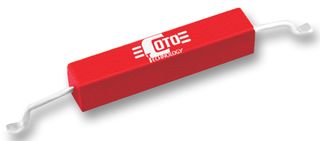

The CT10-1530-G1 from Coto Technology is a moulded dry reed switch with SMD gullwing package. It is single pole, single throw (SPST) type, having normally open ruthenium contacts. The sensor is a double ended type and may be actuated with an electromagnet, a permanent magnet or a combination of both. Typical applications include proximity sensor, security alarm sensor, level sensor, flow sensor and pulse counter.
- Excellent lifetime and reliability
- Rugged encapsulation
- Operation ampere turns range from 10AT to 40AT
- Maximum switching power is 10W
- Maximum switching voltage is 200VDC
- Maximum switching current is 500mA
- Operating temperature range from -40°C to 125°C
