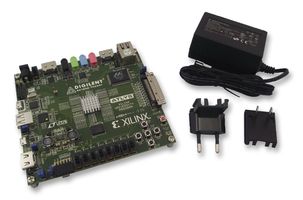

The 410-178是一个完整的, ready to use Atlys circuit电路板. This 数字circuit开发平台 is based a Xilinx Spartan-6 LX45 FPGA, speed grade 3. The large FPGA和on电路板 collection of high end 外部设备 make the Atlys电路板 an 理想的host 用于a wide range of 数字系统s, 包括内嵌处理器设计 based on MicroBlaze. Atlys is 兼容原型 with all Xilinx CAD工具, 包括芯片 Scope, EDK和the free ISE WebPack, 因此无须额外设计费用. The Atlys电路板包括newest Adept USB2 系统, which offers设备programming, real time power supply监视器ing, automated电路板 tests, virtual I/O,和simplified user data transfer facilities. The Atlys电路板 has a 68引脚VHDC 连接器 用于高速/parallel I/O,和an 8引脚Pmod 连接器 用于lower speed和lower引脚count I/O. The Atlys电路板包括six pushbuttons, eight slide switches,和eight LEDs 用于basic 数字input和output.
- 128MB DDR2 16位 宽数据
- 10/100/1000 以太网 PHY
- 板载USB2端口 用于编程和数据传递
- USB至UART和USB至HID端口(用于鼠标/键盘电路板)
- 两个HDMI视频输入端口和两个HDMI输出端口
- AC-97编解码器 带输入,输入, 麦克和耳机插口
- 所有电源轨上装有实时功率监控器
- 16MB x4 SPI闪存用于配置和数据存储
- 100MHz CMOS振荡器
- 48个输入/输出路径 用于扩展连接器
