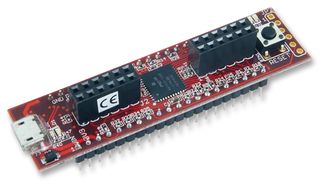

The 芯片KIT Cmod是一个芯片KIT/MPIDE 兼容原型电路板 from Digilent. It combines a Microchip? PIC32MX150F128D微控制器with a convenient 600-mil, 40-pin DIP封装和two Digilent Pmod 连接器. Digilent's Cmod电路板s are 理想的ly suited 用于breadboards or other 原型 circuit设计 where the use of small surface mount封装s is impractical. The 芯片KIT Cmod takes advantage of the powerful PIC32MX150F128D微控制器. This微控制器features a 32-bit MIPS处理器 core运行at 40Mhz, 128K of 闪存存储器,和32K of SRAM data存储器. The 芯片KIT Cmod can be programmed using the Multi-平台集成 开发 Environment, MPIDE, an environment 基于开源Arduino IDE modified to support the PIC32微控制器. The电路板提供everything needed to start developing内嵌型应用 using the MPIDE. The 芯片KIT Cmod is also fully 兼容原型 with the advanced Microchip MPLAB? IDE.
- Microchip? PIC32MX150F128D微控制器 (40/50 MHz 32位MIPS, 128K闪存, 32K SRAM)
- 方便的600-mil, 2x20引脚DIP包
- 33个输入/输出引脚
- 两个用户LED
- 13模拟输入
- 两个Pmod?连接器用于Digilent外部设备模块电路板
