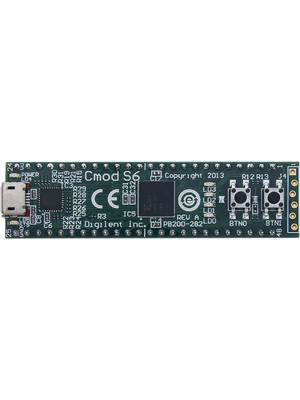

The 410-282P-KIT is a small, 48 pin DIP Cmod S6 board built around Xilinx Spartan 6 LX4 FPGA. This board includes a programming ROM, clock source, USB programming and data transfer circuit, power supplies and basic I/O devices. There are 46 FPGA I/O signals that are routed to 100mil spaced through hole pins making the Cmod S6 well suited for use with solderless breadboards. At just 0.7" by 2.6" inches, it can also be loaded in a standard socket and used in embedded systems. The FPGA on the Cmod S6 can be configured in several ways from a PC using the onboard USB interface or from onboard quad SPI flash memory. The Cmod S6 can be powered either from a USB or from a power source connected to DIP 24 pin that delivers voltage in the range of 5VDC to 15VDC.
- Spartan 6 XC6SLX4-2CPG196 FPGA with 216Kbits of block RAM
- 16MB Spansion quad SPI flash for storing FPGA configurations and user data
- 46 FPGA GPIO signals
- Two onboard clock sources
- 4 user LEDs and 2 user buttons
- Onboard Adept USB 2 port for configuration, test and communications interface
